40ft End to End Tunnel Shipping Container
Product Summary
Price
$3,650.00
Constructed with heavy-duty Corten steel, our shipping containers offer long-lasting durability for a wide range of applications. Each container is thoroughly tested before and after delivery, certified wind and water tight, and screened to confirm it is free from hazardous chemical exposure.
Product Description
Product Overview

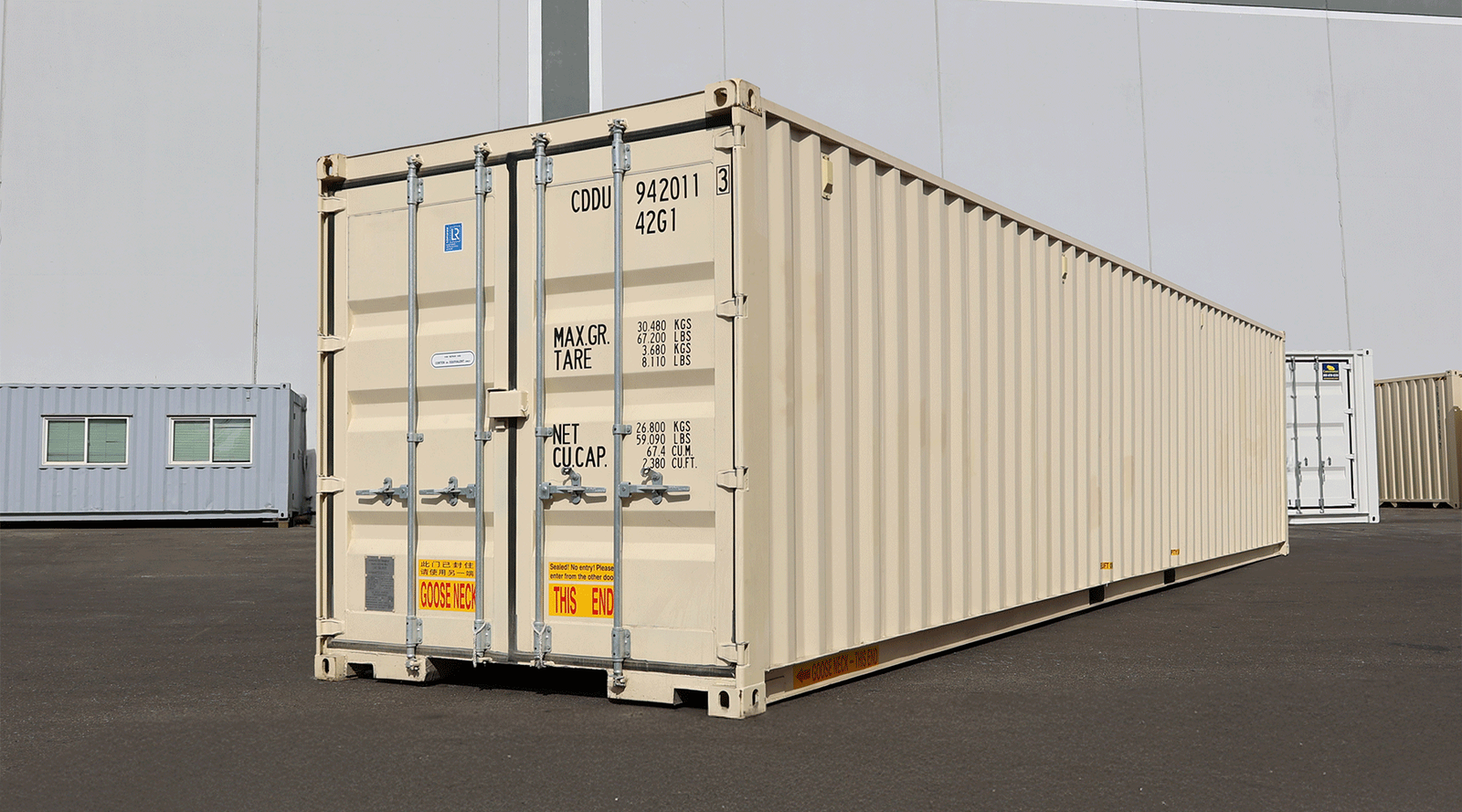

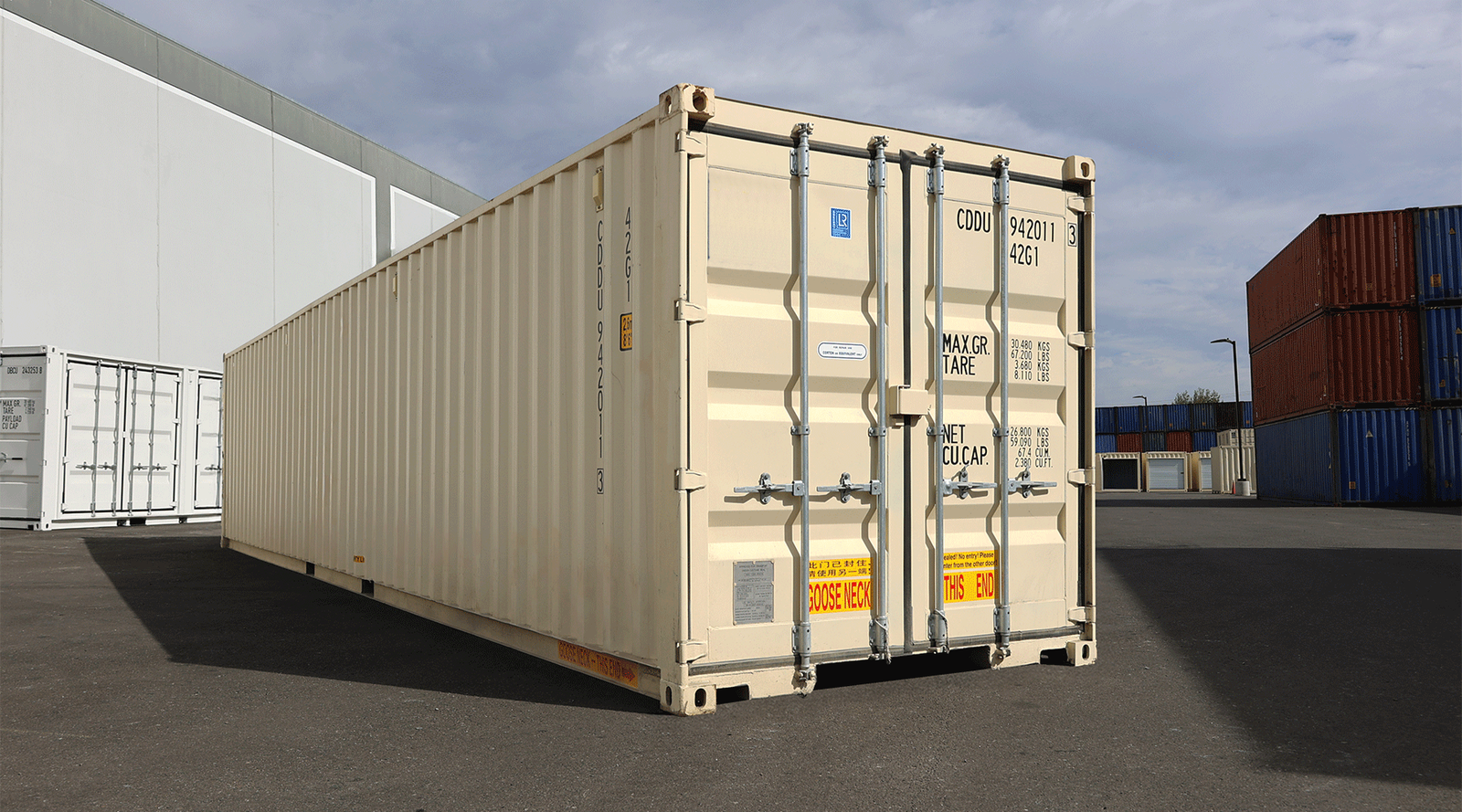

The 40ft End-to-End Tunnel Shipping Container is a specialized storage and transportation solution featuring full cargo doors on both ends of the container. This tunnel-style design allows convenient access from either side, making loading, unloading, inventory rotation, and equipment storage significantly more efficient than standard containers.
External Dimensions
| Specification | Measurement |
|---|---|
| Length | 40 ft (12.19 m) |
| Width | 8 ft (2.44 m) |
| Height | 8 ft 6 in (2.59 m) |

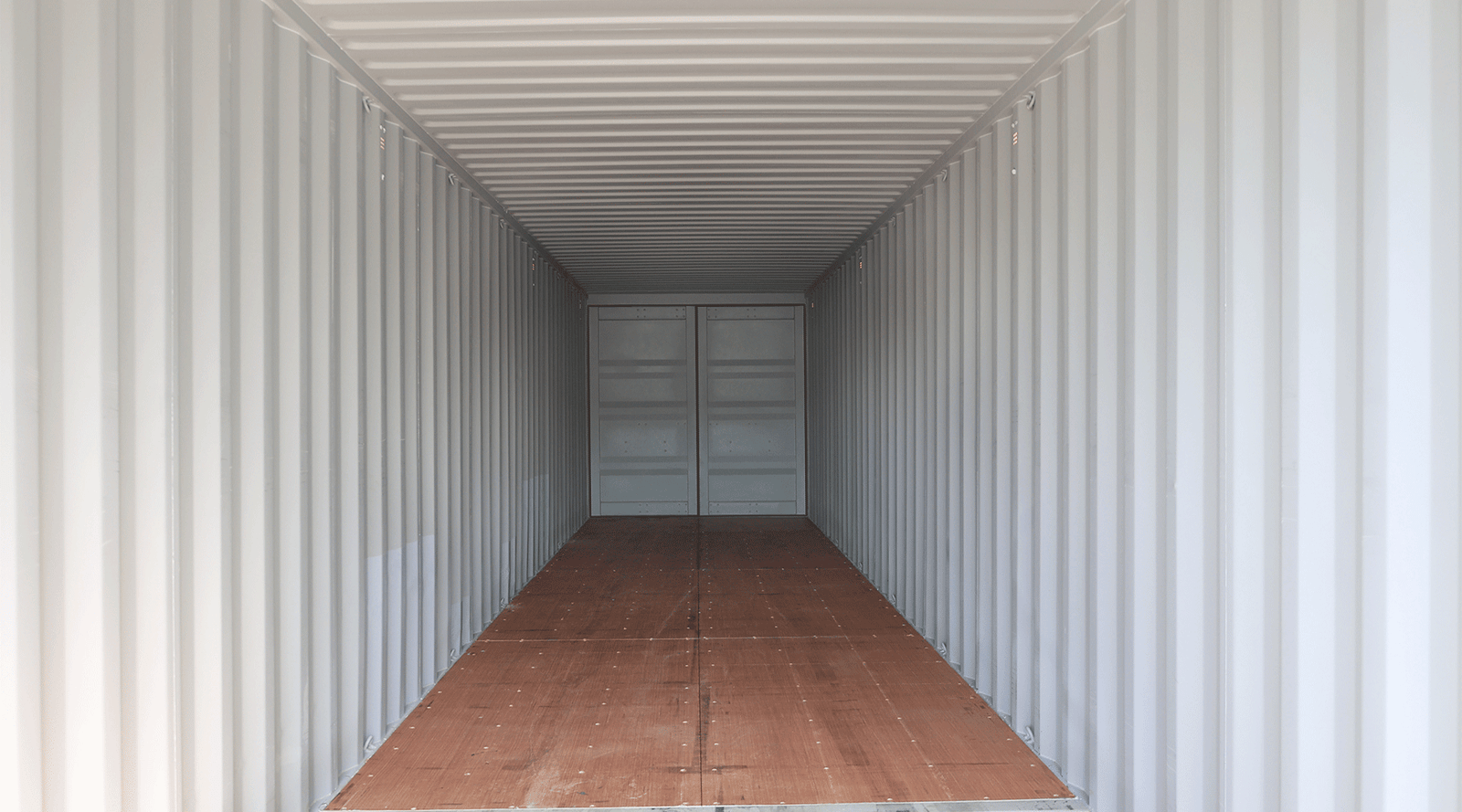

Internal Dimensions
| Specification | Measurement |
|---|---|
| Internal Length | 39 ft 5 in (12.03 m) |
| Internal Width | 7 ft 8 in (2.35 m) |
| Internal Height | 7 ft 10 in (2.39 m) |
| Cubic Capacity | Approximately 2,390 cu. ft. |
Door Openings

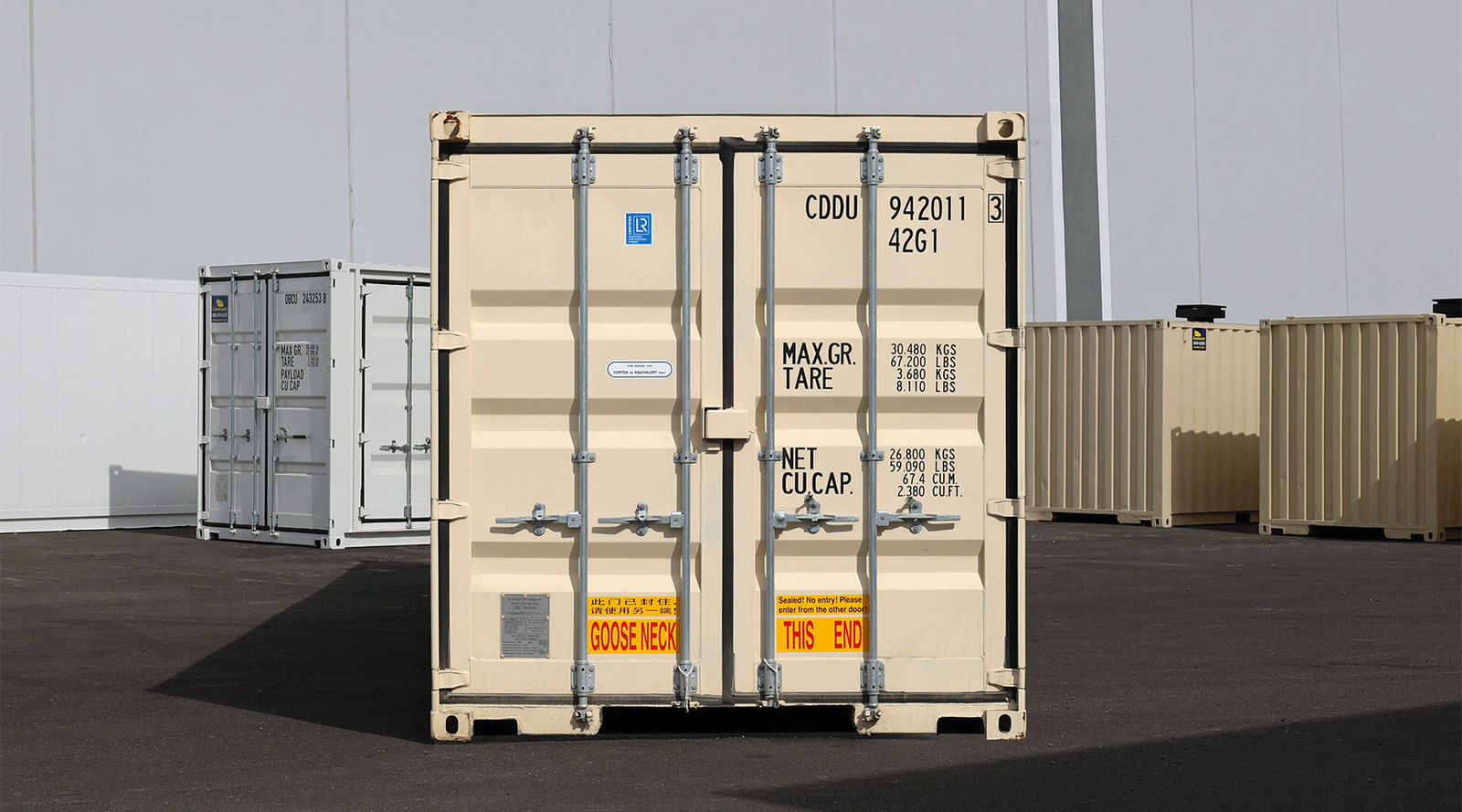

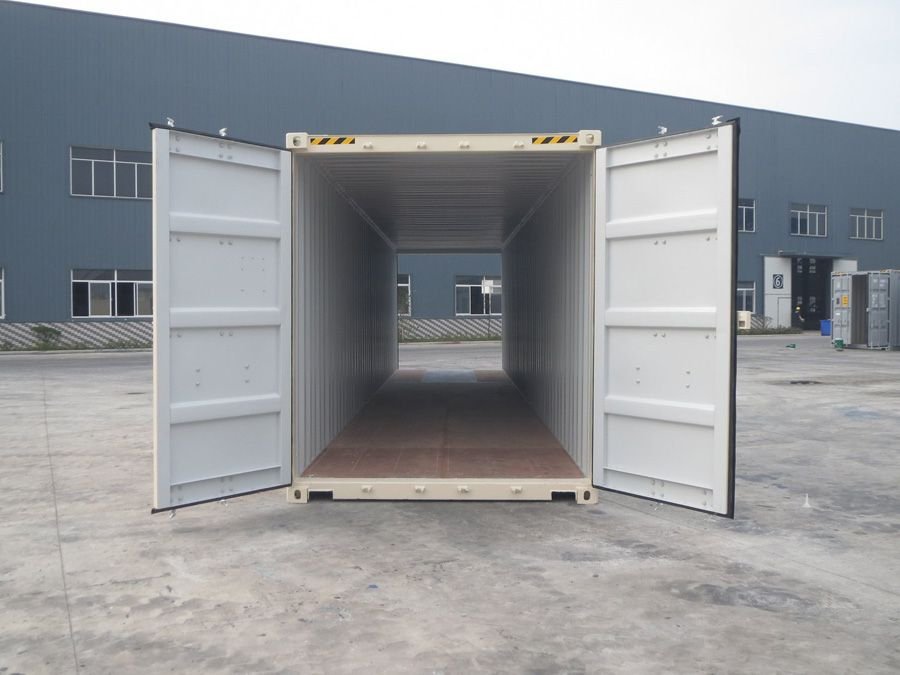

The tunnel container is equipped with double cargo doors at both ends, allowing complete pass-through access.
| Specification | Measurement |
|---|---|
| Door Width | 7 ft 8 in (2.34 m) |
| Door Height | 7 ft 5 in (2.28 m) |
| Door Configuration | Double Swing Doors on Both Ends |
| Locking System | Multiple Steel Locking Bars |
Weight Specifications
| Specification | Measurement |
|---|---|
| Tare Weight | Approx. 8,500 lbs |
| Maximum Payload | Approx. 59,000 lbs |
| Maximum Gross Weight | 67,200 lbs |
Construction Features
- Heavy-duty Corten steel construction
- Marine-grade plywood flooring
- Wind and water tight design
- Factory cargo doors at both ends
- Corrosion-resistant exterior coating
- Forklift compatible
- ISO corner castings for stacking and transport
- Secure multi-point locking system
- Weather-resistant door seals
- Designed for long-term outdoor use
Performance Benefits
The tunnel design offers practical advantages over traditional containers:
- Access cargo from either end
- Simplifies inventory management
- Ideal for first-in, first-out storage systems
- Reduces loading and unloading times
- Convenient drive-through access for long materials
- Improved workflow on construction and industrial sites
- Excellent for high-volume storage operations
Common Uses
- Construction Equipment Storage: Store tools, machinery, and materials with access from either side for increased efficiency.
- Warehouse Overflow Storage: Create additional storage capacity while maintaining organized inventory flow.
- Retail and Distribution Centers: Use the tunnel layout for fast-moving inventory and efficient stock rotation.
- Agricultural Applications: Store feed, equipment, fencing materials, and seasonal supplies with easy retrieval.
- Vehicle and ATV Storage: Accommodate motorcycles, ATVs, utility vehicles, and small equipment with convenient dual-end access.
- Industrial Facilities: Perfect for storing pipes, conduit, lumber, steel stock, and other long materials.
